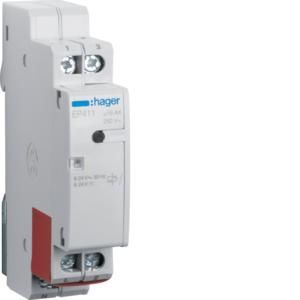

Hager EP411 remote switch 1S 8-240V AC/DC electronic

In stock
SKU: 156196
€29.81
Into a basketIn the basketGo

Overview

Electronic remote switch 1S 8 to 24V AC/DC. Electronic remote switch, switch for pulse control of lighting circuits up to 16 A. The 230 V input and output voltages are bridged in the device. For devices with different control voltages, there is a galvanic separation between low and extra-low voltage. The device has a high idle current for illuminated buttons (up to 100 mA). The device has a low pull-in and holding current. For devices with a release delay, a time between 5 minutes and 1 hour can be set.

Property Value
Width in pitch units: 17.5
Rated switching current: 16 A
Control voltage 1: 8 to 24 V
Control voltage type 1: AC/DC
Control voltage 2: 8 to 24 V
Control voltage type 2: AC/DC
Installation depth: 60 mm
Function: electronic switch
Mounting type: DIN rail
Frequency of control voltage 1: 50 to 60 Hz
Frequency of control voltage 2: 50 to 60 Hz
Type of supply voltage: AC
Supply voltage: 250 V
Max. incandescent lamp load: 1500 W
Max. fluorescent lamp load: 1200 VA
Max. fluorescent lamp load (duo circuit): 600 VA
Max. fluorescent lamp load (parallel compensated): 300 VA
Max. switching current (cos phi = 0.6): 16 A
Number of contacts as normally open: 1

Characteristics

Type of voltage of the supply voltageAC
Supply voltage250 V
Max. fluorescent lamp load1200 VA
ManufacturerHAGER
HANEP411
GTIN3250612364114
Number of contacts as normally open1
Width in pitch units17.5
Installation depth60 mm
FunctionElectronic switch
Mounting typeDIN rail
Supply voltage250V
