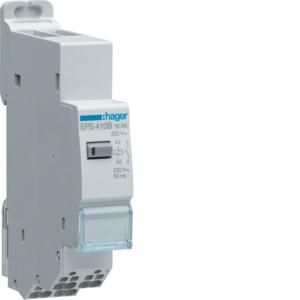

Hager EPS410B remote switch

In stock

SKU: 156182

Price on request

€29.23

€0

Overview

Electronic remote switch 1S 230V. Electronic remote switch, switch for pulse control of lighting circuits up to 16 A. The device has a high idle current for illuminated buttons (up to 100 mA) and a low pull-in and holding current. Automatic detection of the 3- or 4-wire connection. Hand switch on the device with status LED

Property	Value
Width in pitch units:	18
Rated switching current:	16 A
Control voltage 1:	230 V
Control voltage type 1:	AC
Control voltage type 2:	AC
Installation depth:	64 mm
Function:	electronic switch
Mounting type:	DIN rail
Frequency of control voltage 1:	50 to 60 Hz
Frequency of control voltage 2:	50 to 60 Hz
Type of supply voltage:	AC
Supply voltage:	230 V
Max. incandescent lamp load:	1500 W
Max. Fluorescent lamp load:	1200 VA
Max. fluorescent lamp load (duo circuit):	600 VA
Max. fluorescent lamp load (parallel compensated):	300 VA
Max. switching current (cos phi = 0.6):	16 A
Number of contacts as normally open:	1
