Hager HFD440 switch with fuse 4-pole 400A T2

In stock

SKU: 306312

Price on request

€644.93

€0

Overview

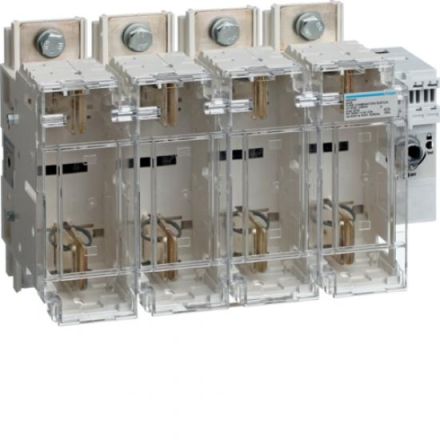

Switch with fuse 4-pole 400 A / T2. NH2- 4-pole load disconnector with NH fuses 400A (not included), for attachment to a mounting plate, suitable for switching on and off under load. Tested according to IEC 947-3. The safety separation and protection against overcurrents in all low-voltage circuits is provided by NH fuses. With double break per phase and switch position indicator.

Property	Value
Rated continuous current Iu:	400 A
Protection class (IP), front:	IP00
Number of poles:	4
Design as main switch:	yes
Design of the actuating element:	Door coupling rotary drive
Type of connection main circuit:	Screw connection
Suitable for front mounting:	no
Suitable for floor mounting:	yes
With fuse monitoring:	no
Version as EMERGENCY STOP device:	no
Conditional rated short-circuit current Iq:	100 kA
Version as safety switch:	no
Max. Rated operating voltage Ue at AC:	415 V
Suitable for busbar construction:	no
Suitable for fuse links:	NH2
Position of the actuating element:	front
Integrated motor drive:	no
Optional motor drive:	no
Rated operating power at AC-23, 400 V:	180 kW
Cable entry:	other
Equipped with connectors:	no
