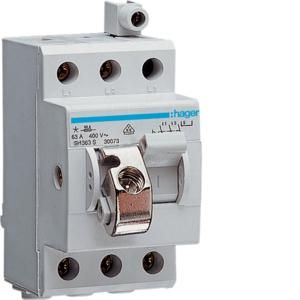

Hager SH363S LOCKABLE switch 3-pole 63A

In stock
SKU: 158300
€40.93
Into a basketIn the basketGo

Overview

Compact switch 63A 3 NO contacts 400V AC lockable 2.5PLE. Off switch 63 A in compact housing according to DIN EN 60669-1 (VDE 0632-1), DIN EN 60669-2-4 (VDE 0632-2-4), DIN EN IEC 60947-3 (VDE 0660-107) with symbol. Switch with additional terminal 10 mm² can be locked, lead-sealable or locked.

Property Value
Number of poles: 3
Rated current: 63 A
Rated voltage: 400 V
Width in pitch units: 2.5
Switching function: Off switch
With signal lamp: no
Voltage type: AC
Protection type (IP): IP20
Min. Rated voltage: 400 V
Short-circuit strength (Icw): 5 kA
Installation depth: 73 mm
Number of contacts as normally open: 3

Characteristics

Min. rated voltage400 V
ManufacturerHAGER
HANSH363S
GTIN3250615589972
Number of contacts as normally open3
Rated voltage400V
Rated current63 A
Width in pitch units2.5
Installation depth73 mm
Short circuit strength (Icw)5kA
With signal lampNo
Number of poles3
Switching functionOff switch
IP protection)IP20
Voltage typeAC
