HAN2CMA142428R1000
HABBWS625YTPN
GTIN7392696424288
Rated operational power at AC-3, 400 V11kW
Rated operating voltage690V
Rated continuous current Iu32 A
Rated continuous current at AC-21, 400 V40A
Rated continuous current at AC-23, 400 V25A
Color of the actuatorRed
Suitable for floor mountingNo
Suitable for front mounting 4-holeYes
Connection type main circuitScrew connection
Suitable for front mounting CentralNo
Suitable for distribution board installationNo
Suitable for intermediate constructionNo

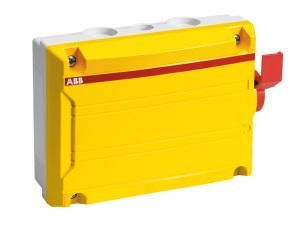

Device typeComplete device in housing
Max. rated operating voltage Ue at AC690V
Number of auxiliary contacts as normally open2
Motor drive integratedNo
Motor drive optionalNo
Number of poles6
Switching capacity at 400 V11kW
Protection class (IP), frontIP65
Protection class (NEMA)4
Voltage release optionalNo
Number of switches1
LockableNo
Designed as main switchYes
Designed as an EMERGENCY STOP deviceNo
Designed as a safety switchYes
Designed as a maintenance/repair switchYes
Version as reversing switchNo
Design of the actuating elementRocker arm
