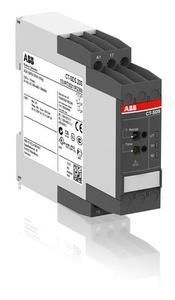

ABB Stotz-Kontakt CT-SDS.23S, time relay, star-delta changeover 2S, 380-440VAC successor to 1SVR630211R2300, 1SVR730211R2300

ABB Stotz-Kontakt CT-SDS.23S, time relay, star-delta changeover 2S, 380-440VAC successor to 1SVR630211R2300, 1SVR730211R2300

In stock

SKU: 193188

Price on request

€102.20

€0

Overview

The CT-S series is ABB's most economical and universal time relay series. The program includes 16 multi-function and 26 single-function devices with up to 11 functions, which allow for maximum flexibility in use. The devices have 7 or 10 time ranges that can be set from 0.05 seconds to 300 hours. In addition, an extended temperature range of -40 °C to +60 °C is possible for selected devices.

Property	Value
Number of outputs, undelayed, normally open:	2
Number of outputs, delayed, normally open:	2
Design of the electrical connection:	Screw connection
Can be plugged onto contactor:	no
Outputs, switchable delayed/undelayed:	no
Type of voltage for actuation:	AC
Time range:	0.05 to 600 s
Rated control supply voltage Us at AC 50 Hz:	380 to 440 V
Rated control supply voltage Us at AC 60 Hz:	380 to 440 V
Rated control supply voltage Us at DC:	24 to 48 V
Width:	22.5 mm
Depth:	103.7 mm
Height:	85.6 mm
With plug-in base:	no
Remote control possible:	no
Suitable as remote control:	no
Response-delayed function:	no
Off-delayed function:	no
On-passing function:	no
Off-passing function:	no
Star/delta function:	yes
Pulse-forming function:	no
Flashing function starting with pause, fixed time:	no
Flashing function starting with pulse, fixed time:	no
Clocking function starting with pause, variable:	no
Clocking function starting with pulse, variable:	no
With semiconductor output:	no
Rated current:	4 A
Suitable for DIN rail mounting:	yes
Suitable for front mounting:	no
