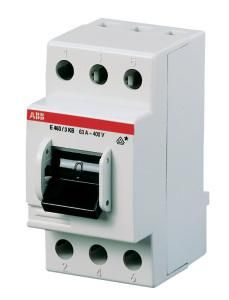

ABB Stotz-Kontakt E463/3KB, main switch 3S,63A,400VAC, 2CCE160300R0131

In stock
SKU: 197740
€14.61
Into a basketIn the basketGo

Overview

As a main switch between the last overcurrent protection device before the measuring device and the circuit distributor. The main switches can also be used for various other applications. With double-breaking switching contacts and short-circuit strength up to 10 kA with pre-fuse In <63 A gG

PropertyValue
Number of poles:3
Rated current:63 A
Rated voltage:400 V
Width in modular spacing:2.5
Switching function:Off switch
With signal lamp:no
Type of voltage:AC
Color of the cap:gray
Protection class (IP):IP20
Min. Rated voltage:24 V
Short-circuit strength (Icw):10 kA
Forced disconnection (according to DIN VDE 0113):yes
Installation depth:70 mm
Number of contacts as normally open:3

Characteristics

HAN2CCE160300R0131
ManufacturerABB Stotz-Kontakt
HABE463/3KB
GTIN7612270932528
Color of the capGray
Min. rated voltage24 V
Rated voltage400V
Rated current63 A
Width in pitch units2.5
Installation depth70 mm
Short circuit strength (Icw)10kA
Number of contacts as normally open3
With signal lampNo
Number of poles3
Switching functionOff switch
IP protection)IP20
Voltage typeAC
