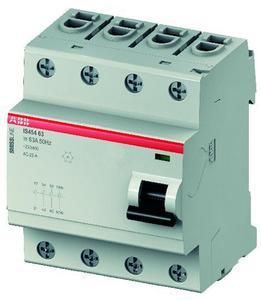

ABB Stotz-Kontakt IS40463, load-break switch In 63A, 4P, plug-in, 2CCF544160E0630

ABB Stotz-Kontakt IS40463, load-break switch In 63A, 4P, plug-in, 2CCF544160E0630

In stock

SKU: 193746

Price on request

€143.13

€0

Overview

With the SMISSLINE IS404 load-break switch, individual consumers, consumer groups or entire system sections can be disconnected from or connected to the mains. When used in the Smissline TP plug-in base system, the load-break switch up to 63 A can be used instead of the feed-in block. The IS404 has isolating properties in accordance with DIN EN 60947-3 and a cylinder lifting terminal with 2 terminal points and rear plug protection.

Property	Value
Number of poles:	4
Rated continuous current Iu:	63 A
Version as EMERGENCY STOP device:	no
Protection class (IP), front:	IP20
Connection type main circuit:	Flat plug connection
Device design:	Complete device in housing
Design of the actuating element:	Toggle
Suitable for floor mounting:	no
Motor drive integrated:	no
Suitable for front mounting 4-hole:	no
Version as maintenance/repair switch:	no
Voltage release optional:	yes
Suitable for front mounting central:	yes
Suitable for intermediate installation:	yes
Suitable for distribution board installation:	yes
Version as main switch:	yes
Version as safety switch:	no
Motor drive optional:	no
Lockable:	no
Version as reversing switch:	no
Rated short-time withstand current Icw:	1.5 kA
Color of the actuating element:	black
Rated operating voltage:	230 to 400 V
Number of switches:	4
Rated continuous current at AC-23, 400 V:	63 A
Protection class (NEMA):	other
