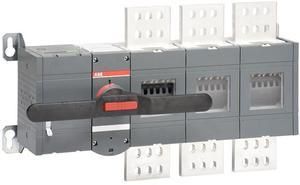

HAN1SCA115373R1001
HABOTM2500E3M230C
GTIN6417019477435
Rated operating voltage1000V
Rated short-time withstand current Icw55kA
Color of the actuatorBlack
Suitable for floor mountingNo
Suitable for front mounting 4-holeYes
Connection type main circuitBolt connection
Suitable for front mounting CentralNo
Suitable for distribution board installationYes
Suitable for intermediate constructionNo
Device typeBuilt-in device Fixed installation technology
Max. rated operating voltage Ue at AC1000V
Motor drive integratedNo
Motor drive optionalNo
Number of poles3
Protection class (IP), frontOther
Protection class (NEMA)1
Voltage release optionalNo
LockableYes
Designed as main switchYes
Designed as an EMERGENCY STOP deviceNo
Designed as a safety switchNo
Designed as a maintenance/repair switchNo
Version as reversing switchNo
Design of the actuating elementLong rotary handle
