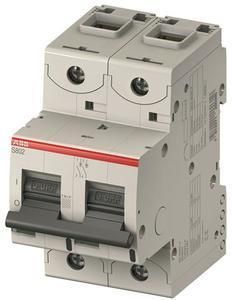

ABB Stotz-Kontakt S802PV-M100-H, load-break switch 1,000VDC, 100A, 2-pole, 2CCP247212R0001

ABB Stotz-Kontakt S802PV-M100-H, load-break switch 1,000VDC, 100A, 2-pole, 2CCP247212R0001

In stock

SKU: 193749

Price on request

€345.68

€0

Overview

The S800PV-M series load break switch can be used for photovoltaic applications up to 1,000V DC. The S800PV complies with the IEC/EN 60947-2 standard and can be used for industrial purposes. Numerous approvals make it suitable for worldwide use and the extensive range of accessories makes it even more convenient to use.

Property	Value
Design as main switch:	yes
Design as maintenance/repair switch:	no
Design as safety switch:	no
Design as EMERGENCY STOP device:	no
Design as reversing switch:	no
Number of switches:	8500
Rated operating voltage:	800
Rated continuous current Iu:	100
Rated short-time withstand current Icw:	1.5
Number of poles:	2
Motor drive optional:	no
Motor drive integrated:	no
Voltage release optional:	yes
Device design:	Complete device in housing
Suitable for floor mounting:	no
Suitable for front mounting 4-hole:	no
Suitable for front mounting central:	yes
Suitable for distributor installation:	yes
Suitable for Intermediate installation:	yes
Color of the actuating element:	black
Design of the actuating element:	toggle
Lockable:	no
Connection type main circuit:	flat plug connection
Protection class (IP), front:	IP20
Protection class (NEMA):	other
