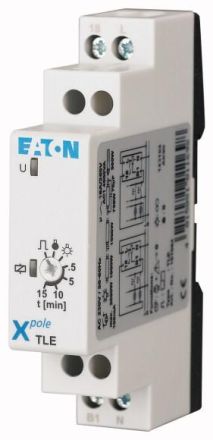

Eaton TLE staircase lighting timer, 4 functions, 1S, 101064

In stock

SKU: 218885

Price on request

€24.18

€0

Overview

Electronic stair light switch, can be switched on again, long-term function programmable, energy saving function, low switching noise, automatic 3-/4-wire detection

Property	Value
Number of outputs, delayed, normally open:	1
Design of the electrical connection:	Screw connection
Can be plugged onto contactor:	no
Outputs, switchable delayed/undelayed:	no
Type of voltage for actuation:	AC
Time range:	30 to 720 s
Rated control supply voltage Us at AC 50 Hz:	230 V
Rated control supply voltage Us at AC 60 Hz:	230 V
Width:	17.5 mm
Depth:	65 mm
Height:	87 mm
With plug-in base:	no
Remote control possible:	no
Suitable as remote control:	no
On-delay function:	no
Off-delay function:	yes
Swift-on function:	no
Swift-off function:	no
Star/delta function:	no
Pulse-forming function:	no
Flashing function starting with pause, fixed time:	no
Flashing function starting with pulse, fixed time:	no
Clocking function starting with pause, variable:	no
Clocking function starting with pulse, variable:	no
With semiconductor output:	no
Rated current:	16 A
Suitable for DIN rail mounting:	yes
Suitable for front mounting:	yes
