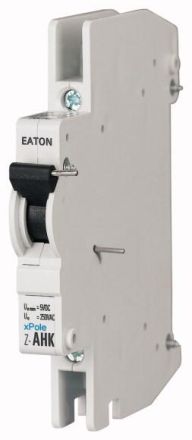

Eaton Z-AHK auxiliary switch, 1NO+1NC, 4A, 250VAC, 248433

In stock
SKU: 218923
€20.38
Into a basketIn the basketGo

Overview

Design according to IEC/EN 60947-5-1, IEC/EN 62019, can be retrofitted (screws), specified minimum voltages apply per switching distance, special attention for series connections!, Z-AHK, Z-NHK: contact function with relative movement (self-cleaning contacts), particularly suitable for low voltages due to contact material and design

PropertyValue
Rated switching current:3 A
Rated voltage:230 V
Device mounting:universal
Factory-fitted:no
Additional device:Auxiliary switch
Suitable for max. number of poles of the main contact unit (total):2
Suitable for max. current of the main contact unit:4 A
With autotest for residual current function:no
Number of contacts as normally open:1
Number of contacts as normally closed:1
Voltage type for actuation:AC

Characteristics

HABZ-AHK
ManufacturerEaton
HAN248433
GTIN4015082484330
Number of contacts as normally open1
Number of contacts as opener1
Rated voltage230V
Voltage type for actuationAC
