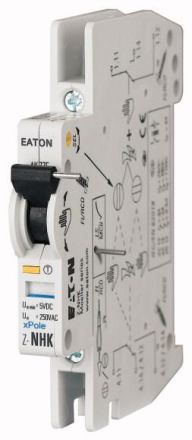

Eaton Z-NHK auxiliary switch, 2W, 4A, 250VAC, 248434

In stock
SKU: 219070
€13.39
Into a basketIn the basketGo

Overview

Design according to IEC/EN 60947-5-1, IEC/EN 62019, can be retrofitted (screws), specified minimum voltages apply per switching distance, special attention for series connections!, function of one of the two changeover contacts can be switched from auxiliary switch to trip signal switch, trip signal contact reports electrical tripping, not mechanical shutdown, test button for contact function electrical tripping

PropertyValue
Rated switching current:4 A
Rated voltage:250 V
Device mounting:universal
Factory-fitted:no
Additional device:Signal switch
Suitable for max. number of poles of the main contact unit (total):2
Suitable for max. current of the main contact unit:4 A
With autotest for residual current function:no
Number of contacts as changeover contacts:2
Voltage type for actuation:AC

Characteristics

HABZ-NHK
ManufacturerEaton
HAN248434
GTIN4015082484347
Number of contacts as changeover2
Rated voltage250V
Voltage type for actuationAC
Eaton Z-NHK auxiliary switch, 2W, 4A, 250VAC, 248434
Eaton Z-NHK auxiliary switch, 2W, 4A, 250VAC, 248434
