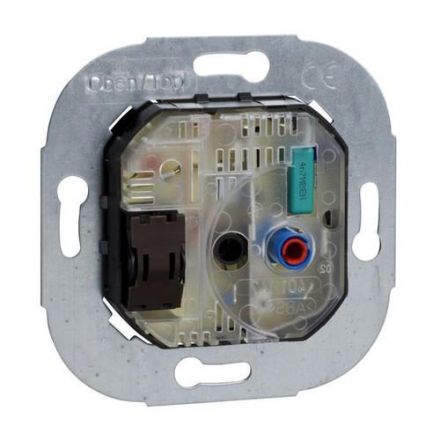

ELSO 176251 opener 10 (4) A on/off switch temperature control insert

In stock

SKU: 432822

Price on request

€62.13

€0

Overview

Electromechanical temperature controller Temperature controller insert 10 (4) A 250V AC opener, with ON/OFF switch and LED separate connection for time-controlled night-time reduction, with thermal feedback, when using control valves, use normally closed

Property	Value
Color:	other
Version:	On/Off
Mounting type:	Flush-mounted
Protection class (IP) :	IP30
Height:	70 mm
Width:	70 mm
Depth:	42 mm
Type of power supply:	230 V AC
Connection:	three-/four-wire
With receiver:	no
Measuring range lower value:	5 °C
Measuring range upper value:	30 °C
Sensor external:	no
Thermal feedback:	parallel
Control characteristics:	other
Heating:	yes
Number of heating outputs:	1
Cooling:	no
Difference value:	0.5 K
Difference adjustable:	no
Temperature readable:	no
With noise level indicator:	no
Sensor design:	bimetal
With display:	no
Operation:	rotary
With drinking water circuit:	no
Contact type:	Opener
Max. voltage of contacts:	230 V
Max. Contact load:	10 A
Protection class (NEMA) :	1
Explosion-proof:	no
Diameter:	57 mm
Class of temperature controller:	I
