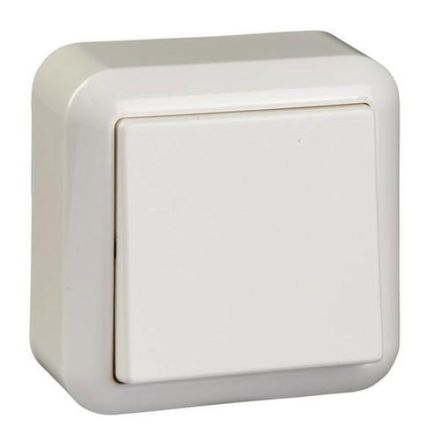

ELSO 381604 AP-changeover switch 10A CONTURA pure white

In stock

SKU: 432472

Price on request

€8

€0

Overview

Universal switch, 10 A 250 V AC, color: pure white, (on/off switch), for surface mounting, protection class IP 20, with base plate, suitable for mounting on flammable surfaces. Plug-in terminals: clamping range for information cables from cable diameter 0.5 mm, for copper conductors 1.5 mm and 2.5 mm.

Property	Value
Color:	white
Suitable for protection class (IP):	IP20
Circuit type:	Toggle switch
Operating type:	Rocker/button
Number of actuating rockers:	1
Mounting type:	Surface-mounted
Push button:	no
Composition:	Base element with complete housing
Fastening type:	Screw fastening
Material:	Plastic
Material quality:	Thermoplastic
Halogen-free:	yes
Surface:	untreated
Surface finish:	glossy
RAL number (similar):	9010
Nominal voltage:	250 V
Switching current for fluorescent lamps:	10 AX
Feedback contact:	no
Washing machine switch:	yes
Connection type:	Plug-in terminal
Number of modules (with modular design):	2
Lighting:	no
Lighting type:	not included
Rated current:	10 A
Device depth:	30 mm
Device width:	63 mm
Device height:	63 mm
With mounting plate:	no
Text field/labeling area:	no
