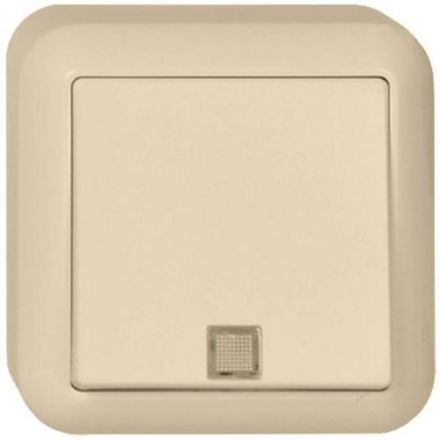

ELSO 382110 AP button 10A illuminated CONTURA pearl white

In stock

SKU: 432672

Price on request

€12.27

€0

Overview

Illuminated button, 10 A 250 V AC, color: pearl white, 1 normally open contact, for surface mounting, protection class IP 20, with base plate, suitable for mounting on flammable surfaces. Plug-in terminals: clamping range for information cables from a cable diameter of 0.5 mm, for copper conductors 1.5 mm and 2.5 mm.

Property	Value
Color:	cream white (electric white)
Design:	Single button
Suitable for protection class (IP):	IP20
Contacts:	1 make contact
Operating method:	Push button
Mounting type:	Surface-mounted
Number of rocker switches:	1
Halogen-free:	yes
Text field/labeling area:	no
Composition:	Base element with complete housing
Feedback contact:	no
With lighting:	yes
Mounting type:	Screw fastening
Material:	Plastic
Material quality:	Thermoplastic
Surface:	untreated
Surface finish:	glossy
RAL number (similar):	1013
Nominal voltage:	250 V
Number of modules (with modular construction):	2
Print:	without
Rated current:	10 A
Device width:	63 mm
Device height:	63 mm
Device depth:	30 mm
Number of poles:	1
Transparent:	no
Antibacterial treatment:	yes
With signal lamp:	no
