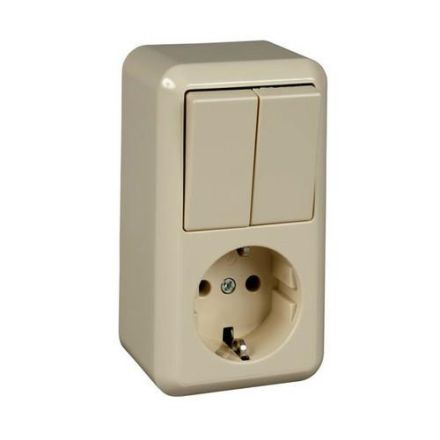

ELSO 388500 10/16A CONTURA pearl white surface-mounted combination series switch

In stock

SKU: 434187

Price on request

€18.86

€0

Overview

Combination series switch and socket, color: pearl white, switch: 10 A 250V AC, socket 16 A 250V AC, for surface mounting, protection class IP 20, with base plate, suitable for mounting on flammable surfaces. Plug-in terminals: clamping range for copper conductors 1.5 mm and 2.5 mm.

Property	Value
Color:	cream white (electric white)
Socket design:	SCHUKO
Number of sockets:	1
Switch design:	Series switch
Suitable for protection class (IP):	IP20
Socket rated current:	16 A
Rated current:	10 A
Nominal voltage:	250 V
Mounting type:	Surface-mounted
Halogen-free:	yes
Operating type:	Rocker/button
Mounting direction:	vertical
Mounting type:	Mounting with screw
With lighting:	no
Material:	Plastic
Material quality:	Thermoplastic
Surface:	untreated
Surface finish:	glossy
RAL number (similar):	1013
Residual current protection:	no
Device width:	63 mm
Device height:	113 mm
Device depth:	43 mm
With fine fuse:	no
Transparent:	no
Surge protection:	no
Number of active contacts (approx.):	2
