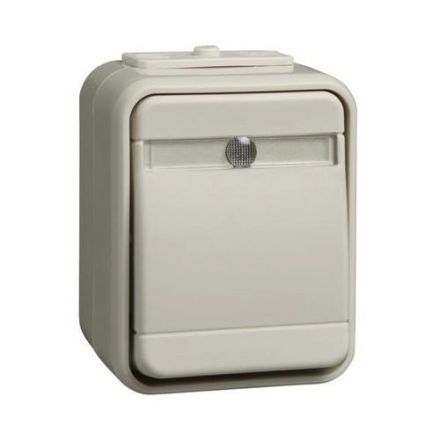

ELSO 441640 control changeover switch 10A AquaTop pearl white

In stock

SKU: 433086

Price on request

€16.15

€0

Overview

Changeover control switch, 10 A 250 V AC, color: pearl white, with light-intensive glow lamp, for surface mounting, protection class IP 44, with two cable entries, plug-in terminals: clamping range for information cables from cable diameter 0.5 mm, for copper conductors 1.5 mm and 2.5 mm.

Property	Value
Color:	cream white (electric white)
Suitable for protection class (IP):	IP44
Circuit type:	Changeover switch
Operating method:	Rocker/button
Number of rocker switches:	1
Mounting type:	Surface-mounted
Push button:	no
Composition:	Base element with complete housing
Mounting type:	Screw fastening
Material:	Plastic
Material quality:	Thermoplastic
Halogen-free:	yes
Surface:	untreated
Surface finish:	matt
RAL number (similar):	1013
Nominal voltage:	250 V
Switching current for fluorescent lamps:	10 AX
Feedback contact:	no
Washing machine switch:	yes
Connection type:	Plug-in terminal
Lighting:	yes
Lighting type:	neon lamp
Lighting function:	illuminated when switched on
Rated current:	10 A
Device depth:	53 mm
Device width:	65 mm
Device height:	81 mm
With mounting plate:	no
Text field/label area:	no
