ELSO 501610 universal switch 10A illuminated RENOVATION pearl white

In stock

SKU: 433752

Price on request

€11.07

€0

Overview

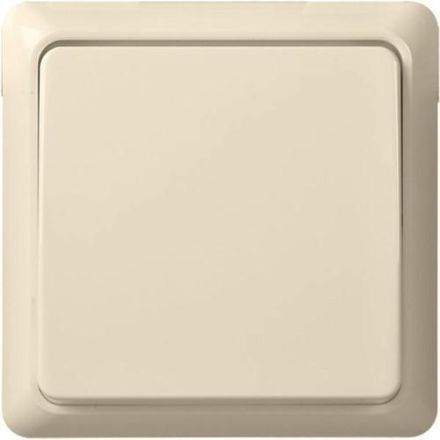

Switch 10 A 250V AC complete devices with switchgear, frame and rocker, only for device carrier, universal switch (on/off switch), color: pearl white, illuminated plug-in terminals clamping range for copper conductors 1.5 mm and 2.5 mm

Property	Value
Color:	white
Suitable for protection class (IP) :	IP20
Circuit type:	other
Operating type:	Rocker/button
Number of Rocker switches:	1
Mounting type:	Surface-mounted
Push button:	no
Composition:	Base element with complete housing
Fastening type:	Screw fastening
Material:	Plastic
Material quality:	Thermoplastic
Halogen-free:	yes
Surface:	untreated
Surface finish:	glossy
RAL number (similar):	1013
Nominal voltage:	250 V
Switching current for fluorescent lamps:	10 AX
Feedback contact:	no
Washing machine switch:	yes
Connection type:	Plug-in terminal
Lighting:	yes
Lighting type:	neon lamp
Lighting function:	orientation
Rated current:	10 A
Installation depth:	32 mm
Device depth:	41 mm
Device width:	80 mm
Device height:	80 mm
With mounting plate:	no
Text field/label area:	no
