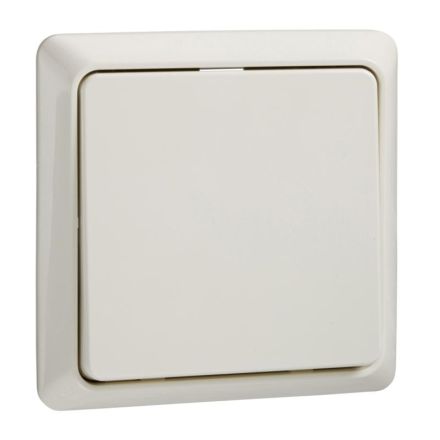

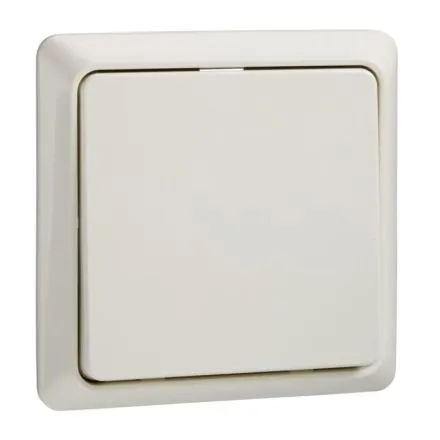

Button 42 V nominal current 1 A Button 42 V for flush mounting, 1 NO contact Complete device with frame and rocker, screwless terminal connection for single and multi-wire conductors up to a diameter of 0.8 mm Color: pearl white
| Property | Value |
| Color: | cream white (electric white) |
| Design: | Single button |
| Suitable for protection class (IP) : | IP20 |
| Contacts: | 1 NO contact |
| Operating mode: | Push button |
| Mounting type: | Flush-mounted |
| Number of rocker switches: | 1 |
| Halogen-free: | yes |
| Text field/labeling area: | no |
| Composition: | Base element with complete housing |
| Feedback contact: | no |
| With lighting: | no |
| Mounting type: | Screw fastening |
| Material: | Plastic |
| Material quality: | Thermoplastic |
| Surface: | untreated |
| Surface finish: | glossy |
| RAL number (similar) : | 1013 |
| Nominal voltage: | 42 V |
| Number of modules (with modular design) : | 2 |
| Print: | without |
| Rated current: | 1 A |
| Device width: | 80 mm |
| Device height: | 80 mm |
| Device depth: | 9 mm |
| Number of poles: | 1 |
| Transparent: | no |
| Antibacterial treatment: | yes |
| With signal lamp: | no |
