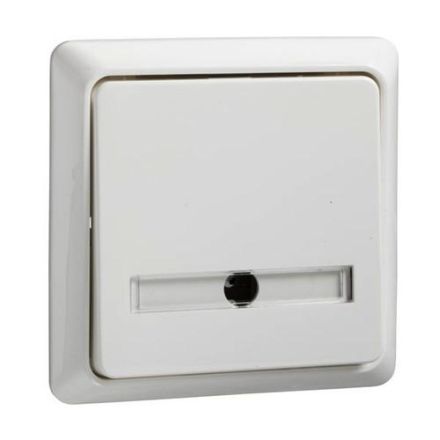

ELSO 506124 42V/1A flush-mounted RENOVATION pure white button

In stock
SKU: 432661
€8.44
Into a basketIn the basketGo

Overview

Button 42 V nominal current 1 A complete device with frame and rocker, button with labeling field label strips with symbols bell, light, key and neutral included flush-mounted, color: pure white screwless terminal connection for single and multi-wire conductors up to a diameter of 0.8 mm

Property Value
Color: white
Design: Single button
Suitable for protection class (IP): IP20
Contacts: 1 make contact
Operating mode: Rocker
Mounting type: Flush-mounted
Number of rocker switches: 1
Halogen-free: yes
Text field/labeling area: yes
Composition: Base element with complete housing
Feedback contact: no
With lighting: no
Mounting type: Screw fastening
Material: Plastic
Material quality: Thermoplastic
Surface: untreated
Surface finish: glossy
RAL number (similar) : 9010
Nominal voltage: 42 V
Number of modules (with modular design) : 2
Print: without
Rated current: 1 A
Device width: 80 mm
Device height: 80 mm
Device depth: 9 mm
Number of poles: 1
Transparent: no
Antibacterial treatment: yes
With signal lamp: no

Characteristics

Feedback contactNo
Number of actuating rockers1
With lightingNo
ManufacturerELSO
HAN506124
GTIN4013984104424
Antibacterial treatmentYes
ImprintWithout
Surface finishGlittering
Operating modeSeesaw
Mounting typeScrew fastening
Rated current1 A
ColorWhite
Device width80 mm
Device height80 mm
Device depth9 mm
Halogen freeYes
With signal lampNo
Mounting typeFlush-mounted
Nominal voltage42V
SurfaceUntreated
Number of poles1
Text field/label areaYes
TransparentNo
MaterialPlastic
Material qualityThermoplastic
CompilationBase element with complete housing
