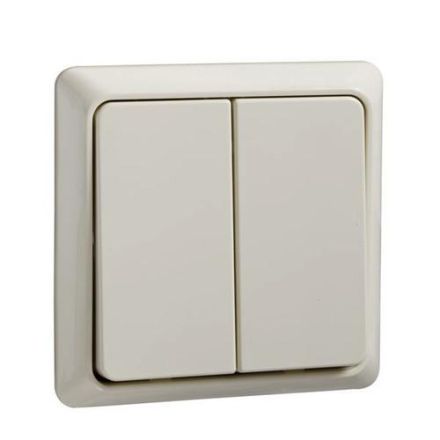

ELSO 506350 42V/1A flat RENOVATION pearl white double button

In stock

SKU: 433700

Price on request

€10.74

€0

Overview

Button 42 V nominal current 1 A complete device with frame and rocker, double button for switching 2 individual relays via 3-wire control cable surface-mounted, flat, color: pearl white screwless terminal connection for single and multi-wire conductors up to 0.8 mm in diameter

Property	Value
Color:	cream white (electric white)
Design:	Series button
Suitable for protection class (IP) :	IP20
Contacts:	2 make contacts
Operating mode:	Push button
Mounting type:	Surface-mounted
Number of rocker switches:	2
Halogen-free:	yes
Text field/labeling area:	no
Composition:	Base element with complete housing
Feedback contact:	no
With lighting:	no
Mounting type:	Screw fastening
Material:	Plastic
Material quality:	Thermoplastic
Surface:	untreated
Surface finish:	glossy
RAL number (similar) :	1013
Nominal voltage:	42 V
Number of modules (with modular design) :	2
Print:	without
Rated current:	1 A
Device width:	80 mm
Device height:	80 mm
Device depth:	23 mm
Number of poles:	2
Transparent:	no
Antibacterial treatment:	yes
With Signal lamp:	no
