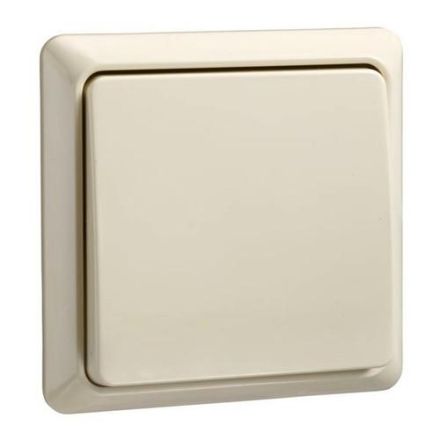

ELSO 511700 cross switch 10A complete RENOVATION pearl white

In stock

SKU: 433094

Price on request

€14.90

€0

Overview

Switch 10 A 250 V AC Complete devices with switchgear, frame and rocker, only for device carrier, cross switch Color: pearl white Screw terminals Clamping range for copper conductors 1.5 mm and 2.5 mm, for the secure connection of aluminum conductors 2.5 mm without pretreatment

Property	Value
Color:	cream white (electric white)
Suitable for protection class (IP) :	IP20
Circuit type:	Cross switch
Operating type:	Rocker/button
Number of rocker switches:	1
Mounting type:	Surface-mounted
Push button:	no
Composition:	Base element with complete housing
Mounting type:	Screw fastening
Material:	Plastic
Material quality:	Thermoplastic
Halogen-free:	yes
Surface:	untreated
Surface finish:	glossy
RAL number (similar):	1013
Nominal voltage:	250 V
Switching current for fluorescent lamps:	10 AX
Feedback contact:	no
Washing machine switch:	no
Connection type:	screw terminal
Lighting:	no
Rated current:	10 A
Installation depth:	32 mm
Device depth:	41 mm
Device width:	80 mm
Device height:	80 mm
With mounting plate:	no
Text field/labeling area:	no
