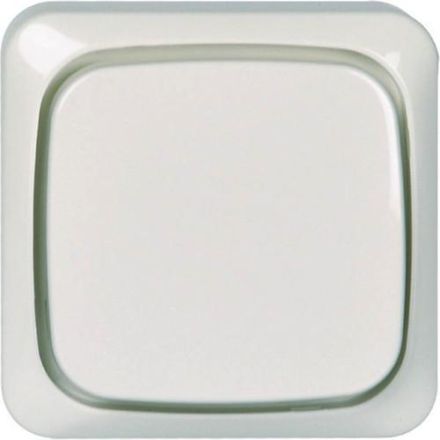

ELSO 561604 16A NOVIA/RENOVATION pure white surface-mounted universal switch

In stock

SKU: 432764

Price on request

€16.43

€0

Overview

Switch in ELSO NOVIA design 16 A 250V AC device with flat switchgear including frame, rocker and flat surface-mounted housing (18 mm), with two potential-free connection terminals Universal switch (on/off switch) Color: pure white Plug-in terminal Clamping range for copper conductors 1.5 mm and 2.5 mm

Property	Value
Color:	white
Suitable for protection class (IP) :	IP20
Circuit type:	other
Operating type:	Rocker/button
Number of rocker switches:	1
Mounting type:	Surface-mounted
Push button:	no
Composition:	Base element with full cover plate
Fastening type:	Screw fastening
Material:	Plastic
Material quality:	Thermoplastic
Halogen-free:	yes
Surface:	untreated
Surface finish:	glossy
RAL number (similar):	9010
Nominal voltage:	250 V
Switching current for fluorescent lamps:	10 AX
Feedback contact:	no
Washing machine switch:	no
Connection type:	Plug-in terminal
Lighting:	no
Rated current:	16 A
Installation depth:	32 mm
Device depth:	45 mm
Device width:	80 mm
Device height:	80 mm
With mounting plate:	no
Text field/labeling area:	no
