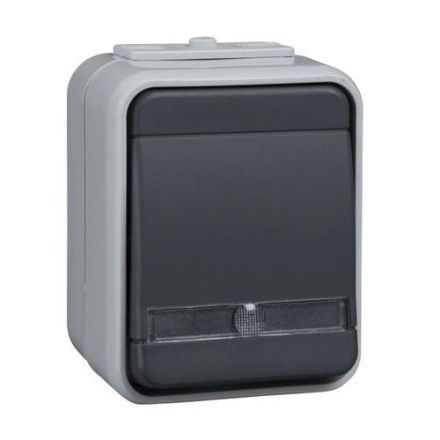

ELSO ELG442119 illuminated 10A AQUATop light/basalt grey button

In stock

SKU: 432752

Price on request

€13.41

€0

Overview

Illuminated button, 10 A 250 V AC, color: light/basalt gray, 1 NO contact, for surface mounting, protection class IP 44, with two cable entries, plug-in terminals: clamping range for information cables from cable diameter 0.5 mm, for copper conductors 1.5 mm and 2.5 mm.

Property	Value
Color:	gray
Design:	Single button
Suitable for protection class (IP):	IP44
Contacts:	1 NO contact
Type of operation:	Push button
Mounting type:	Surface-mounted
Number of rocker switches:	1
Halogen-free:	yes
Text field/labeling area:	no
Composition:	Basic element with complete housing
Feedback contact:	no
With lighting:	yes
Mounting type:	Screw fastening
Material:	Plastic
Material quality:	Thermoplastic
Surface:	untreated
Surface finish:	matt
RAL number (similar):	7035
Nominal voltage:	250 V
Print:	without
Rated current:	10 A
Device width:	65 mm
Device height:	81 mm
Device depth:	53 mm
Transparent:	no
Antibacterial treatment:	no
With signal lamp:	yes
