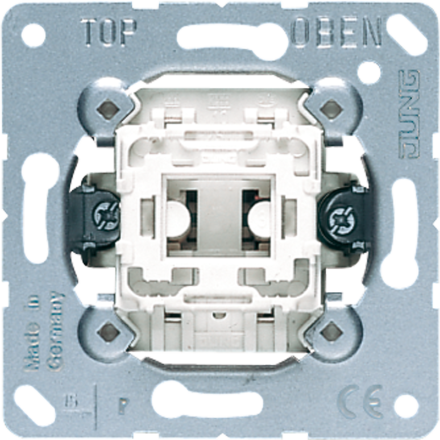

Jung 507U rocker switch, 10 AX 250 V ~, cross

In stock

SKU: 138435

Price on request

€12.94

€0

Overview

Rocker switch, 10 AX 250 V ~, cross with spring terminals for rigid conductors up to 2.5 mm2
Connection terminals according to DIN0632 (EN 60669)
Switch can be illuminated in the OFF position by lamp item no.: 90 or 95 (230 V), 96-.. (low voltage) or LED lamp item no.: 90-LED.. (230 V) or 961248 LED.. (low voltage).

Property	Value
Suitable for protection class (IP):	IP20
Circuit type:	Cross switch
Operating type:	Rocker/button
Number of Rocker switches:	1
Mounting type:	Flush-mounted
Push button:	no
Composition:	Basic element
Fastening type:	Claw/screw fastening
Halogen-free:	yes
Nominal voltage:	250 V
Switching current for fluorescent lamps:	10 AX
Feedback contact:	no
Washing machine switch:	no
Connection type:	plug-in terminal
Lighting:	optional
Lighting type:	LED replaceable
Lighting function:	Orientation
Installation depth:	32 mm
Device width:	71 mm
Device height:	71 mm
With mounting plate:	no
