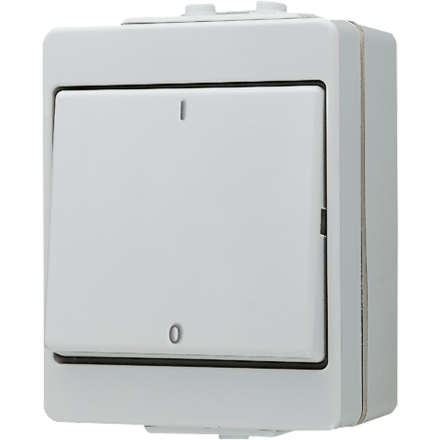

Jung 603W rocker switch, off 3-pole, 16 AX 400 V ~, IP 44, WG 600

Jung 603W rocker switch, off 3-pole, 16 AX 400 V ~, IP 44, WG 600

In stock

SKU: 138475

Price on request

€28.54

€0

Overview

Rocker switch, off 3-pole, 16 AX 400 V ~, IP 44, WG 600 housing 70 x 90 x 47 mm
with screw terminals for rigid and flexible conductors up to 4 mm2
connection terminals in accordance with DIN VDE 0632 (EN 60669)
switch in OFF position can be illuminated by lamp item no.: 98 (400 V) or 98-220 (230 V).

Property	Value
Color:	gray
Suitable for protection class (IP):	IP44
Circuit type:	3-pole switch
Type of operation:	Rocker/button
Number of rocker switches:	1
Mounting type:	Surface-mounted
Push button:	no
Composition:	Base element with complete housing
Mounting type:	Screw fastening
Material:	Plastic
Material quality:	Duroplast
Halogen-free:	yes
Surface finish:	glossy
RAL number (similar):	7035
Nominal voltage:	400 V
Switching current for fluorescent lamps:	16 AX
Feedback contact:	no
Washing machine switch:	no
Connection type:	Screw terminal
Lighting:	yes
Lighting type:	Incandescent lamp
Lighting function:	Orientation
Device depth:	47 mm
Device width:	70 mm
Device height:	90 mm
With mounting plate:	no
Text field/label area:	no
