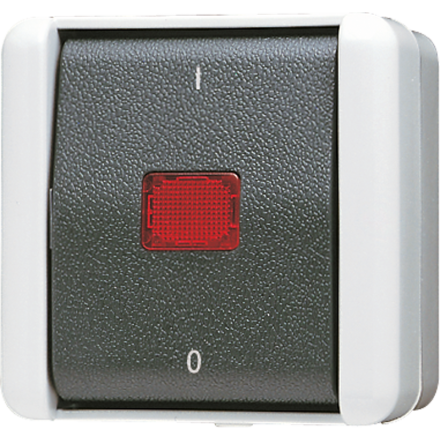

Jung 803KOW rocker control switch, off 3-pole, 16 AX 400 V ~, IP 44, WG 800

Jung 803KOW rocker control switch, off 3-pole, 16 AX 400 V ~, IP 44, WG 800

In stock

SKU: 138537

Price on request

€38.41

€0

Overview

Rocker control switch, off 3-pole, 16 AX 400 V ~, IP 44, WG 800 with red cap (item no.: 33 NR) and glow lamp (item no.: 98)
with screw terminals for rigid and flexible conductors up to 4 mm2
Connection terminals in accordance with DIN VDE 0632 (EN 60669)

Property	Value
Color:	gray
Suitable for protection class (IP):	IP44
Circuit type:	3-pole switch
Operating mode:	Rocker/button
Number of rocker switches:	1
Mounting type:	Surface-mounted
Push button:	no
Composition:	Base element with complete housing
Mounting type:	Screw fastening
Material:	Plastic
Material quality:	Thermoplastic
Halogen-free:	yes
Surface finish:	glossy
RAL number (similar):	7035
Nominal voltage:	400 V
Switching current for fluorescent lamps:	16 AX
Feedback contact:	no
Washing machine switch:	no
Connection type:	screw terminal
Lighting:	yes
Lighting type:	neon lamp
Lighting function:	control and orientation
Device depth:	58 mm
Device width:	75 mm
Device height:	75 mm
With mounting plate:	no
Text field/labeling area:	no
