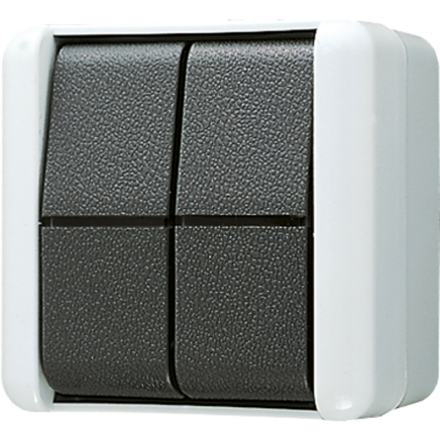

Jung 809W rocker switch, double changeover, 10 AX 250 V ~, IP 44, WG 800

Jung 809W rocker switch, double changeover, 10 AX 250 V ~, IP 44, WG 800

In stock

SKU: 138558

Price on request

€22.52

€0

Overview

Rocker switch, double changeover, 10 AX 250 V ~, IP 44, WG 800 with screw terminals for rigid and flexible conductors up to 2.5 mm2
Connection terminals according to DIN VDE 0632 (EN 60669)

Property	Value
Color:	gray
Suitable for protection class (IP):	IP44
Circuit type:	Changeover/changeover switch
Operating type:	Rocker/button
Number of rocker switches:	2
Mounting type:	Surface-mounted
Push button:	no
Composition:	Base element with complete housing
Fastening type:	Screw fastening
Material:	Plastic
Material quality:	Thermoplastic
Halogen-free:	yes
Version the surface:	glossy
RAL number (similar):	7035
Nominal voltage:	250 V
Switching current for fluorescent lamps:	10 AX
Feedback contact:	no
Washing machine switch:	no
Connection type:	screw terminal
Lighting:	no
Device depth:	58 mm
Device width:	75 mm
Device height:	75 mm
With mounting plate:	no
Text field/labeling area:	no
