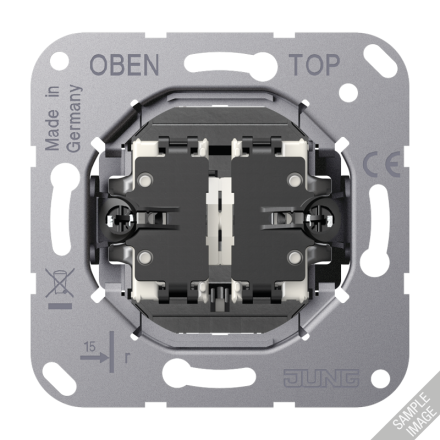

Jung K509EU toggle switch, 10 AX 250 V ~, double changeover, without claws

In stock
SKU: 428921
€40.22
Into a basketIn the basketGo

Overview

Toggle switch, 10 AX 250 V ~, double changeover, without claws with screw terminals for rigid and flexible conductors up to 2.5 mm2
Connection terminals in accordance with DIN VDE 0632 (EN 60669)
(screw fastening, without fastening claws)
Installation instructions: use a deep box
for covers with toggle lever Item no.: ..12-5.., ..12-250.., ..12-25..

Property Value
Suitable for protection class (IP): IP20
Circuit type: Changeover/changeover switch
Operating method: Toggle lever
Number of rocker switches: 1
Mounting type: Flush-mounted
Push button: no
Composition: Base element
Mounting type: Screw fastening
Halogen-free: yes
Rated voltage: 250 V
Switching current for fluorescent lamps: 10 AX
Feedback contact: no
Washing machine switch: no
Connection type: Screw terminal
Lighting: no
Installation depth: 32 mm
Device width: 71 mm
Device height: 71 mm
With Mounting plate: no
Text field/labeling area: no

Characteristics

Feedback contactNo
Number of actuating rockers1
Circuit typeChangeover/changeover switch
LightingNo
Switching current for fluorescent lamps10 AX
Push buttonNo
Washing machine switchNo
ManufacturerJung
HANK509EU
GTIN4011377175105
Connection typeScrew terminal
Operating modeRocker arm
Mounting typeScrew fastening
Installation depth32 mm
Suitable for protection class (IP)IP20
Device width71 mm
Device height71 mm
Halogen freeYes
With mounting plateNo
Mounting typeFlush-mounted
Nominal voltage250V
Text field/label areaNo
CompilationBasic element
