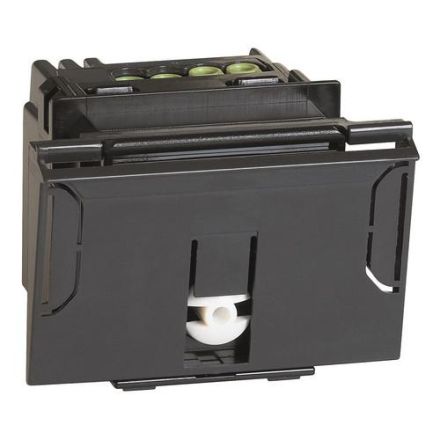

Bticino K4549 LivingNow Hotel Card Switch

Bticino K4549 LivingNow Hotel Card Switch

In stock

SKU: 841414

Price on request

€81.06

€0

Into a basketIn the basketGo

Overview

K4549 LivingNow Hotel Card Switch Manufacturer Article Number: K4549, Manufacturer Article Name: K4549 LivingNow

Property	Value
Colour:	black
Suitable for protection class (IP):	IP20
Operation type:	Hotel card
Mounting type:	Flush-mounted
Push button:	yes
Composition:	Modular device for installation switch programs
Mounting type:	snap-in
Material:	Plastic
Material quality:	Thermoplastic
Halogen-free:	yes
Surface:	untreated
Surface finish:	matt
RAL number (similar):	7015
Nominal voltage:	250 V
Feedback contact:	no
Washing machine switch:	no
Connection type:	screw terminal
Number of modules (with modular design):	2
Lighting:	optional
Lighting type:	other
Lighting function:	orientation
Rated current:	10 A
Installation depth:	31.5 mm
Device depth:	53 mm
Device width:	57 mm
Device height:	45 mm
With mounting plate:	no
Text field/labeling area:	no
Min. depth of device box:	41.5 mm

Characteristics

Feedback contactNo

LightingOptional

Push buttonYes

Washing machine switchNo

Lighting functionOrientation

HABK4549 LivingNow

Manufacturer

HANK4549

GTIN8005543610930

Connection typeScrew terminal

Number of modules (for modular construction)2

Surface finishFrosted

Operating modeHotel card

Mounting typeSnap into place

Rated current10A

Installation depth31.5 mm

Color

Suitable for protection class (IP)IP20

Device width57 mm

Device height45 mm

Device depth53 mm

Halogen freeYes

Min. depth of the device box41.5 mm

With mounting plateNo

Mounting typeFlush-mounted

Nominal voltage250V

SurfaceUntreated

RAL number (similar)7015

Text field/label areaNo

MaterialPlastic

Material qualityThermoplastic

CompilationModular device for installation switch programs
