Bticino N4043N button light symbol 1m white, (white)

In stock

SKU: 249938

Price on request

€7.46

€0

Overview

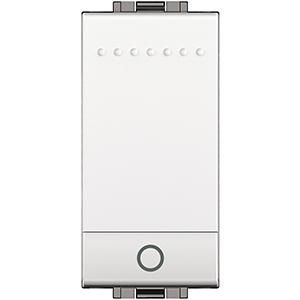

Normally open push button with axial mechanism 10 A including rocker with LIGHT symbol for the LIVINGLIGHT switch range, screwless connection terminals, 1-module version, colour: white

Property	Value
Color:	white
Design:	Single button
Suitable for protection class (IP):	IP20
Operating method:	Push button
Mounting type:	Modular carrier
Number of rocker switches:	1
Halogen-free:	yes
Text field/labeling area:	no
Composition:	Modular device for installation switch programs
Feedback contact:	no
With lighting:	yes
Mounting type:	snap in
Material:	plastic
Material quality:	thermoplastic
Surface:	untreated
Surface finish:	matt
RAL number (similar):	9016
Nominal voltage:	250 V
Number of modules (with modular design):	1
Print:	Symbol 'Light'
Rated current:	10 A
Device width:	22 mm
Device height:	44 mm
Device depth:	37 mm
Number of poles:	1
Transparent:	no
Antibacterial treatment:	no
With signal lamp:	yes
Min. depth of device box:	40 mm
