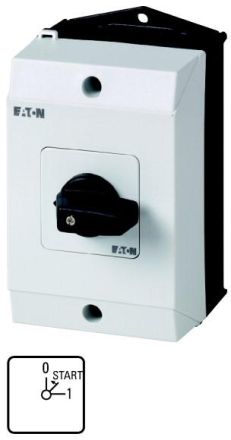

Eaton T0-2-15120/I1 auxiliary phase switch, contacts: 3, 20 A, front plate: 0 , 222597

In stock

SKU: 226031

Price on request

€41.43

€0

Overview

Auxiliary phase switch, Product range: Control switches, Standards and regulations: IEC/EN 60947,0660, IEC/EN 60204, Load-break switch according to IEC/EN 60947-3, Type code: T0, with black toggle and front plate, Contacts: 3, Degree of protection: IP65, Design: Surface mounting, Switching angle: 45 °, Switching behavior: momentary/latching, with 0 position, with return to 0, 2 assembly unit(s), Rated continuous current: Iu= 20 A, Front plate: 0

Property	Value
Rated continuous current Iu:	20 A
Number of poles:	2
Number of switching positions:	3
Degree of protection (IP), front:	IP65
Max. Rated operating voltage Ue at AC:	690 V
With zero position:	yes
With return to zero position:	yes
Device design:	Surface-mounted device
Design of the actuating element:	Toggle
Complete device in housing:	yes
Suitable for intermediate installation:	no
Suitable for distribution board installation:	no
Suitable for front mounting:	no
Front plate size:	48x48 mm
Suitable for floor mounting:	yes
Switch design:	Changeover switch
NEMA protection class, front:	12
