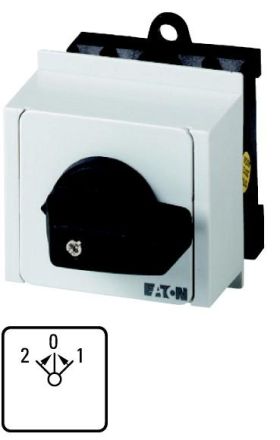

Eaton T0-3-15394/IVS control pushbutton switch, 079198

In stock

SKU: 226422

Price on request

€40.91

€0

Overview

Universal control switch, Product range: Control switches, Standards and regulations: IEC/EN 60947,0660, IEC/EN 60204, CSA, UL, Load disconnector according to IEC/EN 60947-3, Type code: T0, with black knob and front plate, Contacts: 6, Push-button function: Push-button function in positions 1 and 2, Protection class: Front IP30, Design: Distribution board installation, Switching angle: 45 °, Switching behavior: Momentary, with 0 position, with 2-sided retraction after 0, 3 assembly unit(s), Rated continuous current: Iu= 20 A, Front plate: 2>0

Property	Value
Rated continuous current Iu:	20 A
Number of poles:	3
Number of switching positions:	3
Degree of protection (IP), front:	IP30
Max. Rated operating voltage Ue at AC:	690 V
With zero position:	yes
With return to zero position:	yes
Device design:	Built-in device
Design of the actuating element:	Toggle
Complete device in housing:	no
Suitable for intermediate installation:	no
Suitable for distribution board installation:	yes
Suitable for front mounting:	no
Front plate size:	48x48 mm
Suitable for floor mounting:	yes
Switch design:	Group switch
NEMA protection class, front:	2
