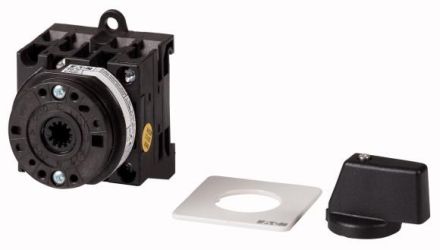

Eaton T0-4-15374/XZ Contacts: 8, 20 A, 45 °, intermediate mounting, basic switch, 013717

In stock

SKU: 226696

Price on request

€45.01

€0

Overview

Changeover switch, Product range: Control switches, Standards and regulations: IEC/EN 60947,0660, IEC/EN 60204, Switch disconnector according to IEC/EN 60947-3, Type code: T0, Contacts: 8, Design: Intermediate installation, Basic switch, Switching angle: 45 °, 4 Unit(s), Rated continuous current: Iu= 20 A

Property	Value
Rated continuous current Iu:	20 A
Number of poles:	4
Number of switching positions:	3
Degree of protection (IP), front:	IP00
Max. Rated operating voltage Ue at AC:	690 V
With zero position:	yes
With return to zero position:	yes
Device design:	Built-in device
Design of the actuating element:	Toggle
Complete device in housing:	no
Suitable for intermediate installation:	yes
Suitable for distribution board installation:	no
Suitable for front mounting:	no
Front plate size:	48x48 mm
Suitable for floor mounting:	yes
Switch design:	On/off switch
NEMA protection class, front:	other
