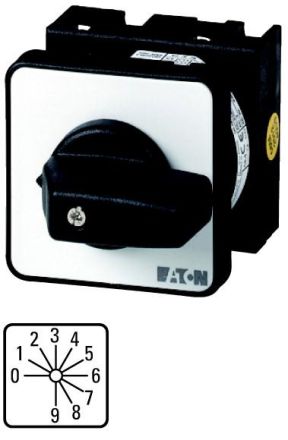

Eaton T0-4-15602/E On-Off switch, 029368

In stock
SKU: 226697
€45.56
Into a basketIn the basketGo

Overview

Code switch, Product range: Control switches, Standards and regulations: IEC/EN 60947,0660, IEC/EN 60204, CSA, UL, Load disconnector according to IEC/EN 60947-3, Type code: T0, with black knob and front plate, Contacts: 8, Protection class: Front IP65, Design: Built-in, Switching function: Dual BCD code 0-9, Switching angle: 30 °, Switching behavior: latching, with 0 position, 4 component (s), Rated continuous current: Iu= 20 A, Front plate: 0-9

PropertyValue
Rated continuous current Iu:20 A
Number of switching positions:10
Degree of protection (IP), front:IP65
Max. Rated operating voltage Ue at AC:690 V
With zero position:yes
With return to zero position:no
Device design:Built-in device
Design of the actuating element:Toggle
Complete device in housing:no
Suitable for intermediate installation:no
Suitable for distribution board installation:no
Suitable for front mounting:yes
Front plate size:48x48 mm
Suitable for floor mounting:no
Switch design:coding switch
NEMA protection class, front:12

Characteristics

HABT0-4-15602/E
ManufacturerEaton
HAN029368
GTIN4015080293682
Number of switching positions10
Design of the actuating elementGag
Design of the switchCoding switch
Rated continuous current Iu20A
Front shield size48x48 mm
Suitable for floor mountingNo
Suitable for front mountingYes
Suitable for distribution board installationNo
Suitable for intermediate constructionNo
Device typeBuilt-in device
Complete device in housingNo
Max. rated operating voltage Ue at AC690V
With zero settingYes
With retraction to zero positionNo
NEMA protection class, front12
Protection class (IP), frontIP65
