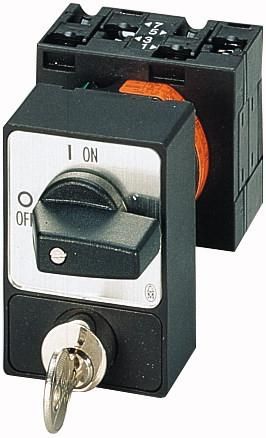

HABT3-2-1/E/SVA (S)
HAN050983
GTIN4015080509837
Connection type main circuitScrew connection
Number of switches1
Designed as main switchNo
Designed as an EMERGENCY STOP deviceNo
Designed as a safety switchNo
Designed as a maintenance/repair switchNo
Version as reversing switchNo
Design of the actuating elementShort twist grip
Conditional rated short-circuit current Iq1kA
Rated operational power at AC-3, 400 V11kW
Rated operating voltage690V
Rated continuous current Iu32 A
Rated continuous current at AC-21, 400 V32 A
Rated short-time withstand current Icw0.65kA
Color of the actuatorBlack
Suitable for floor mountingNo
Suitable for front mounting 4-holeYes
Suitable for front mounting CentralNo
Suitable for distribution board installationNo
Suitable for intermediate constructionNo
Device typeBuilt-in device Fixed installation technology
Max. rated operating voltage Ue at AC690V
Motor drive integratedNo
Motor drive optionalNo
Number of poles3
Switching capacity at 400 V15kW
Protection class (IP), frontIP65
Protection class (NEMA)12
Voltage release optionalNo
LockableYes
