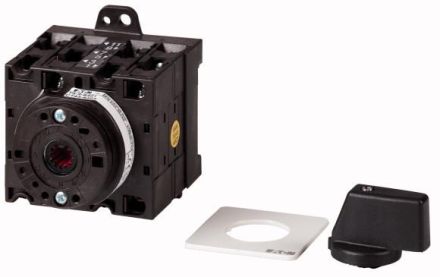

Eaton T3-5-15070/XZ Contacts: 9, 32 A, 45 °, intermediate mounting, basic switch, 004032

In stock
SKU: 227529
€109.88
Into a basketIn the basketGo

Overview

Contacts: 9, 32 A, 45 °, intermediate mounting, basic switch

Eaton Type: T3-5-15070/XZ
Eaton Article No.: 004032

PropertyValue
Number of poles:9
Operating power:15 kW
Rated continuous current Iu:32 A
Max. Rated operating voltage Ue at AC:690 V
Version as EMERGENCY STOP device:no
Protection class (IP), front:IP00
Connection type main circuit:screw connection
Device design:Built-in device, fixed installation technology
Design of the actuating element:short rotary handle
Suitable for floor mounting:yes
Conditional rated short-circuit current Iq:1 kA
Motor drive integrated:no
Suitable for front mounting 4-hole:no
Version as maintenance/repair switch:no
Voltage release optional:no
Suitable for front mounting central:no
Suitable for intermediate installation:yes
Suitable for distribution board installation:yes
Version as main switch:no
Version as safety switch:no
Motor drive optional:no
Lockable:no
Version as Reversing switch:no
Rated short-time withstand current Icw:0.65 kA
Color of the actuating element:black
Rated operating voltage:690 V
Rated operating power at AC-3, 400 V:11 kW
Switching capacity at 400 V:15 kW
Rated continuous current at AC-21, 400 V:32 A
Number of switches:1
Protection class (NEMA):other

Characteristics

HABT3-5-15070/XZ
ManufacturerEaton
HAN004032
GTIN4015080040323
Connection type main circuitScrew connection
Number of switches1
Designed as main switchNo
Designed as an EMERGENCY STOP deviceNo
Designed as a safety switchNo
Designed as a maintenance/repair switchNo
Version as reversing switchNo
Design of the actuating elementShort twist grip
Conditional rated short-circuit current Iq1kA
Rated operational power at AC-3, 400 V11kW
Rated operating voltage690V
Rated continuous current Iu32 A
Rated continuous current at AC-21, 400 V32 A
Rated short-time withstand current Icw0.65kA
Color of the actuatorBlack
Suitable for floor mountingYes
Suitable for front mounting 4-holeNo
Suitable for front mounting CentralNo
Suitable for distribution board installationYes
Suitable for intermediate constructionYes
Device typeBuilt-in device Fixed installation technology
Max. rated operating voltage Ue at AC690V
Motor drive integratedNo
Motor drive optionalNo
Number of poles9
Switching capacity at 400 V15kW
Protection class (IP), frontIP00
Protection class (NEMA)Other
Voltage release optionalNo
LockableNo
