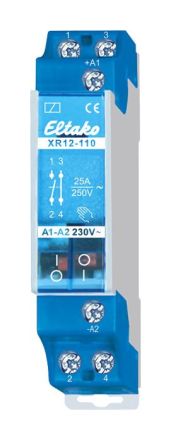

Eltako 22110930 installation contactor XR12-110-230V

In stock

SKU: 188039

Price on request

€25.69

€0

Overview

2-pole 25A/250V AC. Modular devices for mounting on DIN-EN 60715 TH35 rail with manual operation and switch position indicator. 1 pitch unit = 18mm wide, 55mm deep. Duty cycle 100%. Control power requirement 1.9W. Contacts 1 normally open and 1 normally closed. Contact spacing 3mm. Test voltage contact/contact 2000V and test voltage control connections/contact 4000V.

Property	Value
Type of operating voltage:	AC
Protection class (IP):	IP20
Max. incandescent lamp load:	2300 W
Rated operating current:	25 A
Rated operating voltage:	250 V
Max. fluorescent lamp load (parallel compensated):	1000 VA
Max. fluorescent lamp load (duo circuit):	3600 VA
Max. Fluorescent lamp load:	3600 VA
Additional equipment possible:	yes
Type of actuating voltage:	AC
Installation depth:	55 mm
Number of contacts as normally open:	1
Number of contacts as normally closed:	1
