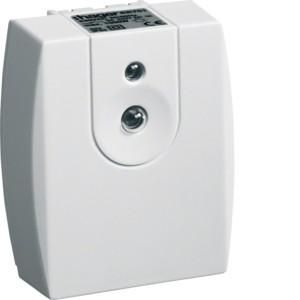

Hager EE701 twilight switch

In stock
SKU: 155654
€49.76
Into a basketIn the basketGo

Overview

Compact twilight switch for surface mounting. Compact twilight switch in a surface-mounted housing. The illuminance is measured via a photocell. Depending on the set value, the twilight switch switches the circuit on or off.

Property Value
Switch-on delay: 40 s
Switch-off delay: 120 s
Suitable for protection class (IP): IP55
Nominal voltage: 230 V
Mounting type: Surface-mounted
Color: white
RAL number (similar): 9010
Switch-on brightness: 10 to 30 lx
Operating temperature: -25 to 45 °C
Max. switching power: 1000 W
Max. Switching current (ohmic load): 8 A
Sensor design: Built-in light sensor
Switch-off brightness: 10 to 30 lx
Contacts: 1 normally open contact
Material: Plastic
Material quality: other
Halogen-free: yes
Surface: other
Surface finish: matt
Suitable for C load: no
Transparent: no

Characteristics

ManufacturerHAGER
HANEE701
GTIN3250612257010
Surface finishFrosted
Operating temperatur-25 to 45 °C
ColorWhite
Suitable for C-loadNo
Suitable for protection class (IP)IP55
Halogen freeYes
Max. switching capacity1000W
Mounting typeSurface-mounted
Nominal voltage230V
SurfaceOther
RAL number (similar)9010
TransparentNo
MaterialPlastic
Material qualityOther
