Hager EEN100 twilight switch with surface-mounted sensor

In stock

SKU: 155657

Price on request

€66.34

€0

Overview

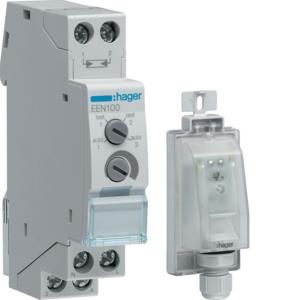

Twilight switch with surface-mounted sensor EEN003. Twilight switch measures the lighting intensity via a photocell and switches a circuit on or off depending on the measured and set value with an additional switching status display. Measurement in two brightness ranges and setting of the ON/OFF delay time. Switch for permanent ON/OFF or automatic/test operation. Integrated connection error and contact display for the sensor. Supplied in a set with a surface-mounted sensor EEN003.

Property	Value
Rated voltage:	230 V
Rated frequency:	50 to 60 Hz
Max. incandescent lamp load:	2300 W
Max. fluorescent lamp load:	1000 VA
Max. fluorescent lamp load (duo circuit):	1000 VA
Max. fluorescent lamp load (parallel compensated):	1000 VA
Max. Switching current (cos phi = 0.6):	10 A
Rated switching current:	10 A
Setting range brightness value:	5 to 2000 lx
With programmable night switch-off:	no
Button input:	no
Rated voltage light sensor:	230 V
Protection class light sensor:	II
Mounting type light sensor:	other
Mounting type:	DIN rail
Width in pitch units:	1
Installation depth:	17.8 mm
Protection class (IP):	IP20
Protection class (IP), light sensor:	IP55
