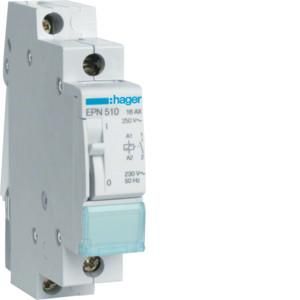

Hager EPN510 impulse switch 1S 220V

In stock

SKU: 158741

Price on request

€13.12

€0

Overview

Remote switch 1 normally open contact 230V AC 16A 1PLE. Remote switch for pulse control according to EN60669-1 and EN60669-2-2 and finger-safe according to BGVA2. With contact position indicator, manual operation, labeling option directly on the device and suitable for subsequent installation of additional equipment.

Property	Value
Width in pitch units:	17.5
Rated switching current:	16 A
Control voltage 1:	230 V
Control voltage type 1:	AC
Control voltage 2:	110 V
Control voltage type 2:	DC
Installation depth:	63 mm
Function:	mechanical switch
Mounting type:	DIN rail
Frequency of control voltage 1:	50 to 60 Hz
Frequency of control voltage 2:	50 to 60 Hz
Type of supply voltage:	AC
Supply voltage:	250 V
Max. incandescent lamp load:	1800 W
Max. fluorescent lamp load:	800 VA
Max. fluorescent lamp load (duo circuit):	1600 VA
Max. fluorescent lamp load (parallel compensated):	900 VA
Max. switching current (cos phi = 0.6):	16 A
Number of contacts as normally open:	1
