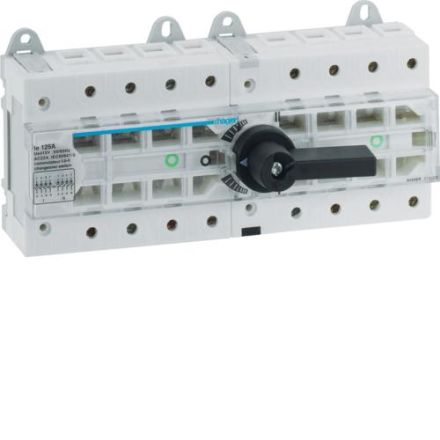

Hager HI406R changeover switch 125A

In stock

SKU: 158926

Price on request

€396.12

€0

Overview

Load changeover switch 4-pole 125A. Changeover switch according to EN60947-3 for switching under load between two low-voltage circuits with safety separation. For mounting on DIN rail or mounting plate. Three switching positions I - 0 - II.

Property	Value
Number of poles:	4
Rated operating power at AC-23, 400 V:	28 kW
Rated continuous current Iu:	125 A
Max. Rated operating voltage Ue at AC:	690 V
Design as EMERGENCY STOP device:	no
Protection class (IP), front:	IP20
Connection type main circuit:	Screw connection
Device design:	Built-in device, fixed installation technology
Design of the actuating element:	short rotary handle
Suitable for floor mounting:	yes
Conditional Rated short-circuit current Iq:	50 kA
Integrated motor drive:	no
Suitable for 4-hole front mounting:	no
Version as maintenance/repair switch:	yes
Voltage release optional:	no
Suitable for central front mounting:	no
Suitable for intermediate installation:	no
Suitable for Distribution board installation:	yes
Version as main switch:	yes
Version as safety switch:	yes
Motor drive optional:	no
Lockable:	yes
Version as reversing switch:	yes
Rated short-time withstand current Icw:	2.5 kA
Color of the actuating element:	black
Rated operating voltage:	380 to 690 V
Switching capacity at 400 V:	82 kW
Rated continuous current at AC-21, 400 V:	125 A
Number of switches:	1
Rated continuous current at AC-23, 400 V:	63 A
Protection class (NEMA):	other
