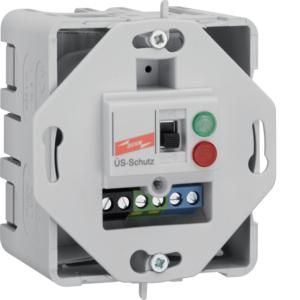

TEHALIT G3133 Surge protection module for C-profile installation

In stock

SKU: 309439

Price on request

€115.29

€0

Overview

Surge protection module type 3 with clamping technology, halogen-free C-profile installation. Surge protection module ÜSM Type 3 with device installation box for C-profile fastening for integrated device installation (tehalit) with universal frame cover, optical multiple display red/green, programmable acoustic function.

Property	Value
Protection level:	1.5 kV
Nominal voltage AC:	230 V
Nominal voltage DC:	230 V
Highest continuous voltage DC:	255 V
Highest continuous voltage AC:	255 V
Mounting type:	other
With remote signaling contact:	no
Nominal discharge current (8/20) (LN):	1.5 kA
Total discharge current (8/20) (L+N-PE):	1.5 kA
Nominal load current:	16 A
Protection level LN:	1.25 kV
Protection level L-PE/N-PE:	1.25 kV
Number of poles:	1
Signaling on the device:	acoustic and optical
Test class type 3:	yes
With interference filter:	no
Max. conductor cross-section, rigid (single/multi-wire):	1.5 mm²
Max. Flexible conductor cross section (fine-wire):	1.5 mm²
Protection class (IP):	IP20
Total leakage surge current (8/20) (L1+L2+L3+N-PE):	1.5 kA
