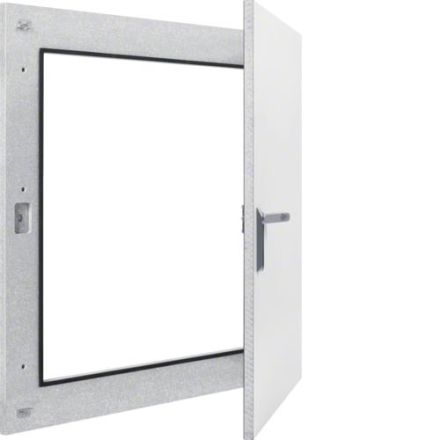

Fire wall-mounted door 30min, H1045xW795xD51mm, IP42. Electrical wall-mounted door FB*WLN, fire resistance period 30min (F30) with fire exposure from outside, fire load insulation 30min (I30) from inside, for mounting on walls. Suitable for small to large-format sealing of electrical wall-mounted distributors in escape routes, as well as for revisable sealing of installation shafts in accordance with MLAR and MBO. Tests: Fire chamber test by an official materials testing institute, Design: Single-door/double-door design, surface-mounted, single-leaf door with DIN right stop, doors on the surface, locking via swivel lever, prepared for DIN half cylinder, integration into the house locking system possible, locking via push rod - 2-point locking, stainless steel hinges can be detached, thus door can be dismantled (weight reduction), fire and smoke protection seal all around, outer color pure white RAL 9010, edges in contrasting color, protection class according to IP42, protection class II, material, tested building material with surface coating A2-S1, d0 manufactured, high chemical resistance, high mechanical strength and stability, high material density, moisture-resistant, additional equipment/options: mounting frame for additional doubling to increase the distance of the wall-mounted door from the wall (max. 3 pieces) FZ294N-FZ304N, 22mm thick, mounting through pre-drilled holes in the outer frame on Solid wall or GRP stud wall using the included fastening material.
| Property | Value |
| Design: | Hinged door |
| Design as a glazed door: | no |
| Design as a door for circuit breaker locking: | no |
| Surface design: | painted |
| Color: | white |
| Height: | 1045 mm |
| Width: | 795 mm |
| Material: | other |
| EMC version: | no |
| Depth: | 51 mm |
| Protection class (IP): | IP42 |
