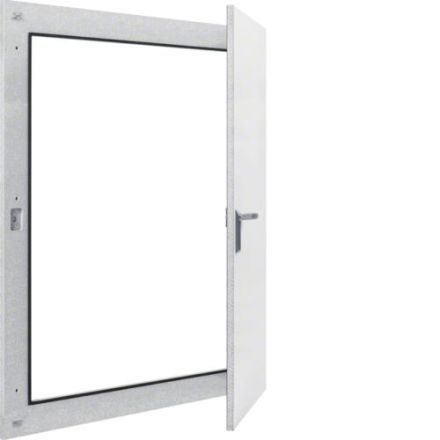

Fire protection wall-mounted door, universal, 30min, 1495x1045x51mm, IP42. Electrical wall-mounted door F30/I30 for full-surface wall mounting on solid walls to secure escape and rescue routes. Tests: Fire chamber test was carried out at an official materials testing institute. Suitable for small to large-format partitioning of electrical wall distributors in escape routes, as well as for revisable partitioning of installation shafts in accordance with MLAR and MBO. Building materials comply with the requirements of classification A2-s1 d0 of DIN EN 13501-1. General building authority approvals (DIBt): Fire resistance class corresponding to a fire resistance period in accordance with DIN 4102-2 (F30) and based on DIN 4102-11 (I30). Wall-mounted doors made of non-flammable fire protection panels in accordance with DIN 4102-1 consisting of a compensation frame with approved fastening materials directly on the wall and door. Single or double door with DIN right-hand stop and 180° opening angle. Door with swivel lever, door lock via push rod with 2-point locking and prepared for DIN half cylinder. All-round smoke and fire protection seals with self-foaming in the event of a fire. Notes: Additional compensation frames possible. The housing can be provided with various surfaces (decor/varnish/veneer/metal) by the manufacturer.
