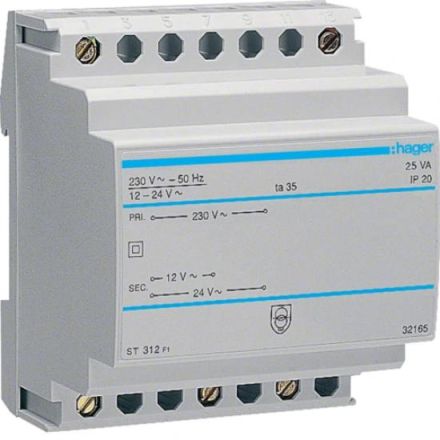

Hager ST312 transformer safety transformer

In stock

SKU: 158816

Price on request

€64.11

€0

Overview

Safety transformer 230V / 12V and 24V 25VA 4PLE. Safety transformer with separate primary and secondary windings. Protection against short circuit or overload is provided by an integrated thermal switch on the primary side.

Property	Value
Type of transformer:	Safety transformer
Primary voltage:	230 V
Width in pitch units:	4
Secondary voltage 1:	12 V
Secondary voltage 2:	24 V
Secondary current 1:	2.08 A
Secondary current 2:	1.04 A
Short-circuit proof:	yes
Length:	85 mm
Width:	70 mm
Height:	58 mm
Max. Output power:	25 W
Suitable for series installation:	yes
Temperature protection:	yes
Max. output current:	3 A
Max. power loss:	1.8 W
With on/off switch:	no
