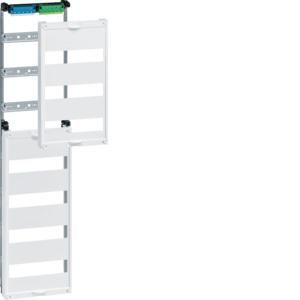

Installation kit, univers FW, with top hat rails, for field distributor UP 7-row, 1050x250mm, QC. Installation panel for flush-mounted installation small distribution boards in accordance with DIN EN 61439-1/-3 /0660-600-1/-3, in accordance with dimensional standard DIN 43 871, for the installation of devices up to 125 A, support rails made of profiled and galvanized sheet steel, device support rails made of galvanized sheet steel with contact protection cover.
| Property | Value |
| Height: | 1050 mm |
| Width: | 250 mm |
| Depth: | 84 mm |
| Number of DIN rails: | 7 |
| Number of pitch units per DIN rail: | 12 |
| With N-PE terminals: | yes |
| With cover: | yes |
| Type of cover: | closed |
| With mounting plate: | no |
