Hager ZU52A installation kit 1350mm 2ZP

In stock

SKU: 155798

Price on request

€236.19

€0

Into a basketIn the basketGo

Overview

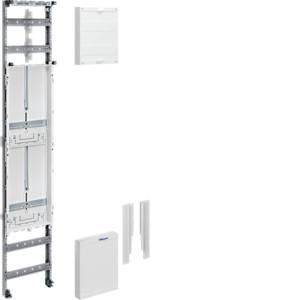

Installation kit, univers Z, height 1350mm, 2 meter spaces, 1-field, with top hat rail

Property	Value
Height:	1350 mm
Width:	250 mm
Width in division units:	12
Design:	2-storey
Number of meter spaces:	2
Number of TSG spaces:	2
With mounting plate:	no
Lower connection compartment:	with top hat rails
Cover design:	narrow
Main switch rated current:	63 A
Color:	white
RAL number:	9010
Protection class (IP):	other

Characteristics

Manufacturer

HANZU52A

GTIN3250617810579

Number of meter slots2

Version

Cover designNarrow

Width250 mm

Width in pitch units12

Color

Main switch rated current63 A

Height1350 mm

With mounting plateNo

RAL number9010

IP protection)Other

Lower connection compartmentWith DIN rails
