TEHALIT VR12059005 supply unit R12 5mm jet black

In stock

SKU: 308064

Price on request

€80.59

€0

Overview

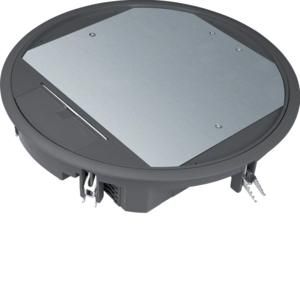

Supply unit R12 round 306mm for 5mm floor covering made of polyamide deep black. Supply unit in accordance with DIN EN 50085-1 and DIN EN 50085-2-2, including universal fastening set, with floor protection frame, device cup can be lowered in stages up to 18 mm, with connection option for flat chain.

Property	Value
Installation diameter:	306 mm
Outer diameter:	325 mm
Number of device cups:	3
With floor covering recess:	yes
RAL number:	9005
Colour:	black
Suitable for wet care:	no
Suitable for underfloor duct:	yes
Suitable for hollow floor installation:	yes
Suitable for raised floor installation:	yes
Depth of the floor covering recess:	5 mm
Floor covering protection frame:	yes
Min. Installation depth:	77 mm
Cover design:	round
Protection class (IP):	IP20
Number of SCHUKO sockets:	12
